ZJ-YBA brass hydraulic fuel quick flexible connect couplings

FOB Reference Price:Get Latest Price
US $4-30 / Sets | 1 Set/Sets brass Hydraulic fuel quick flexible connect couplings (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Fittings, brass hydraulic fuel quick flexible connect couplings
Model Number:
ZJ-YBA brass hydraulic fuel quick flexible connect couplings
Brand Name:
Aike
Place of Origin:
Jiangxi, China (Mainland)
Certificate:
CE,ISO 9001:2008/ISO 14001:2004/SGS
OEM/ODM:
Accepted
Heat Treatment:
Quenching
Size:
1/8",1/4",3/8",1/2",3/4",1"
Surface Treatment:
plating
Material:
Steel,Stainless steel,Brass
O-ring Material:
NBR, FPM, Q, AU or EPDM
Thread:
BSPT, BSPP, BSP, JIC and NPT
Samples:
Free
SupplyAbility
SupplyAbility:
50000 Set/Sets per Month brass Hydraulic fuel quick flexible connect couplings
Packaging & Delivery
Packaging Details
Each into pvc box,6sets into small carton, carton size:16.2X11.7x12.3cm each small carton into big carton, Carton size:34x24x26cm G.W.:21.8kg N.W.:20.8 (brass Hydraulic fuel quick flexible connect couplings)
Port
Ningbo/Guangzhou/Any port in China

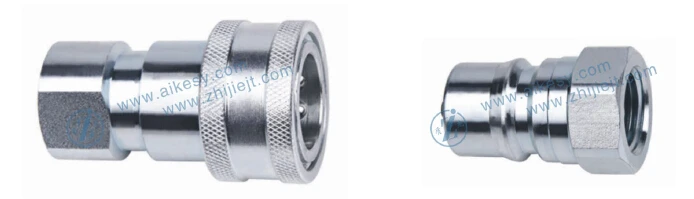

 ZJ-YBA  brass Hydraulic fuel quick flexible connect couplings

Product Description



 ZJ-YBA brass Hydraulic fuel quick flexible connect couplings features:



Valve plug can automatically close to prevent leakage when couplings are disconnected.

Valve plug can automatically open to let fluid get through when couplings are connected.

Key parts are induction hardened for a better durability.

Function reliable ball-lock system combines 2 marched half parts together.

Male coupling and female coupling are machined from solid steel bar stock.

These couplings reach ISO7241-1B standard.

The same function and can interchange following foreign products: PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HA Series.



ZJ-YBA brass Hydraulic fuel quick flexible connect couplings  applications:



The ZJ-YBA brass Hydraulic fuel quick flexible connect couplings Series are suitable for all kinds of hydraulic usage. If fluid delivery pipe needs to be connected or disconnected because of operation or maintenance without fluid leakage, ZJ-YBA can help, because it has double shut-off couplings.

The ZJ-YBA brass Hydraulic fuel quick flexible connect couplings Series are wildly used for coupling in industrial fields , such as construction equipment, forest equipment, hydraulic machine tools, petroleum equipment, steel equipment and other hydraulic equipment or tools.

Body size(in)1/81/43/81/23/41
Code010203040608
Rated pressure(Mpa)
STEEL34.534.527.627.620.720.7
STAINLESS STEEL 31613..813.813.810.410.47
BRASS777777
Rated Flow(L/min)3.811.52345.5106190

 Temperature Range(NBR):-20°c+100°c

 Temperature Range(NBR):-20°c+180°c

ISO 7241-1B Close type hydraulic quick disconnect coupling



Product surface treatment:



ISO 7241-1B Close type hydraulic quick disconnect coupling



How ZJ-YBA brass Hydraulic fuel quick flexible connect couplings made:



ISO 7241-1B Close type hydraulic quick disconnect coupling



Packaging & Shipping

Packaging FP&D





Company Information

Company: Jiangxi Aike Industrial Co., Ltd.

Address: Yuanshangang Industrial Zone,Dongxiang,Fuzhou,Jiangxi,P.R.of China

Covered Area:30,000 sq.

Established Year: 1992

Staff: 135 (110 workers,5 engineers and 20 office staffs)

Equipment: 62 manual lathes,39 CNC machines,4 leak detectors and 2 laser marks.

company Info F

CE certificate





Our Services

1.We are factory:

a.The latest high-tech equipment

b.Professional before-after sales team

c.Provide SGS report

d.Interchangable with international series coupling including PARKER,FASTER,HANSEN etc.

2.Low MOQ: 500 sets for pneumatic quick coupling and 100 sets for hydraulic quick coupling

3.OEM&ODM: accepted

4.Good quality:we have 8 QC inspect one by one,4 leak detectors and final check before shipment

5.Fast delivery: we could control the production period so as to speed up the delivery.





FAQ

Q1:Why we choose you ?

a.We are real factory,we can control delivery by ourself.

b.We are real factory,our price is more Competitive.

c.We have a professional sales team,all enquiry can be reply within 12 hours.

   you can contact us in any time without time difference.

d.Our sales team members has been in import and export at lease 3 years.

Q2:What's your process to place order ?

Confirm Design  lead time  artwork →Sign PI →customer sign pI and pay Deposit

Q3:What's your payment terms ?

T/T.30%Deposit and 70%balance before shipment.

Q4:What's your service to us ?

a.Before place order ,We could help you to check the shipping cost ,Also we can arrange shipping as  we have coorperated cargo company.

b.Durning Production ,we would update your production anytime if you need .Normally we would send   you email with production photos every 3days.

c.Doc.for custom clearance would sent asap.

Q5: What’s your product life cycle?

About 500,000 times connection and disconnection.
